• Angular Contact Ball Bearings

  • The TG range of angular contact ball bearings has been designed to meet the increasingly demanding requirements of original equipment manufacturers. These bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads.




    Design Attributes:

    High Quality Steel :Ultra clean steel to extend bearing life by up to 80%.
    Advanced Grease Technology:TG lubricants that can extend grease life and performance.
    High Grade Balls: Quiet and smooth operation even at high speed.
    Super Finished Raceways :Specially honed to minimise noise and improve lubricant distribution and life.
    Contact Angle:Offered in 15, 25 and 30 degree angles.
    Cages: Available in a range of Polyamide, steel and brass cage assemblies.

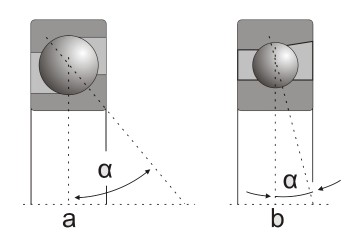

    Contact angles

    TG single row angular contact ball bearings(series 72 and 73) are produced with several different contact angles, which are identified by various suffixes:


           Suffix                    Contact angle


             B                                40
             C                                15
             AC                               25




    Typical applications

     Gearboxes
     Agricultural machinery
     Pumps and compressors
     Ventilators
     Machine tools
     Etc.
